- Size: 1080*1300*1400mm
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JT
- Model Number: JT-420S
- Weight: 600.000 kg

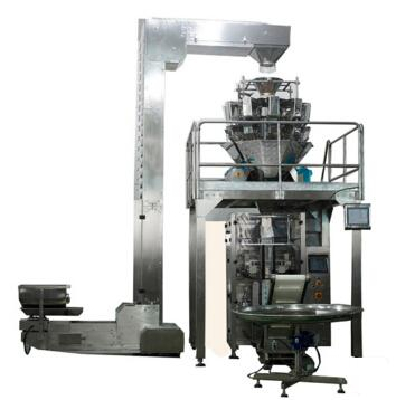

Pasta packaging machine
1. It is controlled by a micro computer,with touching the screen,and the operation is simple .
2. PLC computer system , function is more stable , adjust it with any parameters ,and don’t need to stop machine.
3. It can stock ten dispose , simple to change variety.
4. Sever motor drawing film , position accurately.
5. Temperature independent control system ,precision degree get to±1°C.
6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
7. Packing type diversification , pillow sealing, standing type ,punching etc.
8. Bag–making , sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Technical parameters:
Type | JT-420 |
Bag length | 50-300mm(L) |
Bag width | 50-200mm(W) |
Max width of roll film | 420mm |
Packing speed | 5-60bags/min |
Measuring range | 150-1200ml |
Air consumption | 0.65mpa |
Gas consumption | 0.3m³/min |
Power voltage | 220VAC/50Hz |
Power | 2.2KW |
Dimension | (L)1080mm*(W)1300mm*(H)1400mm |
Deadwight of machine | 600kg |
